RTNI - A symbolic integrator for Haar-random tensor networks
Author
Motohisa Fukuda, Robert König, Ion Nechita
Title
RTNI - A symbolic integrator for Haar-random tensor networks
Description
RTNI allows to compute averages of tensor networks containing multiple Haar-distributed random unitary matrices and deterministic symbolic tensors
Category
Working Material
Keywords
tensor networks, random tensors, random unitary matrices, symbolic integration, Weingarten calculus
URL
http://www.notebookarchive.org/2020-01-a42211b/
DOI
https://notebookarchive.org/2020-01-a42211b
Date Added
2020-01-22
Date Last Modified
2020-01-22
File Size
126.15 kilobytes
Supplements
Rights
CC BY 4.0
Download
Open in Wolfram Cloud
Examples for the use of RTNI discussed in the paper
Examples for the use of RTNI discussed in the paper
In[]:=
SetDirectory[NotebookDirectory[]];<<RTNI`
Package RTNI (Random Tensor Network Integrator) version 1.0.5 (last modification: 26/01/2019).
Loading precomputed Weingarten Functions from /precomputedWG/functions1.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions2.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions3.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions4.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions5.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions6.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions7.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions8.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions9.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions10.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions11.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions12.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions13.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions14.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions15.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions16.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions17.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions18.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions19.txt
Loading precomputed Weingarten Functions from /precomputedWG/functions20.txt
Example: Creation of Figure 3 in main paper
Example: Creation of Figure 3 in main paper
In[]:=
e1={{"U",1,"out",1},{"U",2,"out",1}}e2={{"U",1,"in",1},{"A",1,"out",1}}e3={{"U",2,"in",1},{"A",1,"out",2}}g={e1,e2,e3};visualizeTN[g]Export["visualizeTNnoedgelabels.pdf",%]visualizeTN[g,{EdgeLabelingTrue}]Export["visualizeTNedgelabels.pdf",%]
Out[]=
{{U,1,out,1},{U,2,out,1}}
Out[]=
{{U,1,in,1},{A,1,out,1}}
Out[]=
{{U,2,in,1},{A,1,out,2}}
Out[]=
Out[]=
visualizeTNnoedgelabels.pdf
Out[]=
Out[]=
visualizeTNedgelabels.pdf
Example 6.1: Twirling a matrix
Example 6.1: Twirling a matrix
In[]:=
e1={{"U",1,"out",1},{"X",1,"in",1}};e2={{"Y",1,"out",1},{"U",1,"in",1}};e3={{"U*",1,"out",1},{"Y",1,"in",1}};e4={{"X",1,"out",1},{"U*",1,"in",1}};g={e1,e2,e3,e4}visualizeTN[g](*alternative:visualizeTN[{{g,1}},{EdgeLabelingTrue}]*)Export["TrXUYUstar.pdf",%]Eg=integrateHaarUnitary[g,"U",{d},{d},d];visualizeTN[Eg]Export["ETrXUYUstar.pdf",%]
Out[]=
{{{U,1,out,1},{X,1,in,1}},{{Y,1,out,1},{U,1,in,1}},{{U*,1,out,1},{Y,1,in,1}},{{X,1,out,1},{U*,1,in,1}}}
Out[]=
Out[]=
TrXUYUstar.pdf
Out[]=
,
1
d
Out[]=
ETrXUYUstar.pdf
In[]:=

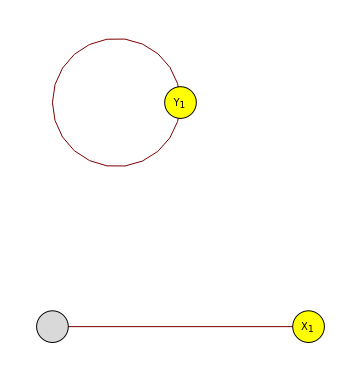

e1={{"U",1,"out",1},{"X",1,"in",1}};e2={{"Y",1,"out",1},{"U",1,"in",1}};e3={{"U*",1,"out",1},{"Y",1,"in",1}};g={e1,e2,e3}Eg=integrateHaarUnitary[g,"U",{d},{d},d]visualizeTN[g]Export["XUYUstar.pdf",%]visualizeTN[Eg]Export["EXUYUstar.pdf",%]
Out[]=
{{{U,1,out,1},{X,1,in,1}},{{Y,1,out,1},{U,1,in,1}},{{U*,1,out,1},{Y,1,in,1}}}
Out[]=
{{{Y,1,out,1},{Y,1,in,1}},{{X,1,in,1},{dummy-U*-IN-1-1,1,out,1}}},
1
d
Out[]=
Out[]=
XUYUstar.pdf
Out[]=
,
1
d
Out[]=
EXUYUstar.pdf
Example 6.2: Several tensor factors
Example 6.2: Several tensor factors
In[]:=
e1={{"A",1,"out",1},{"U",1,"in",1}};e2={{"A",1,"out",2},{"U",1,"in",2}};e3={{"U*",1,"out",1},{"A",1,"in",1}};e4={{"U*",1,"out",2},{"A",1,"in",2}};e5={{"U",1,"out",2},{"U*",1,"in",2}};g={e1,e2,e3,e4,e5}Eg=integrateHaarUnitary[g,"U",{n,k},{n,k},nk]visualizeTN[g]Export["id-Tr-UU-A-UstarUstar.pdf",%]visualizeTN[Eg]Export["E-id-Tr-UU-A-UstarUstar.pdf",%]
Out[]=
{{{A,1,out,1},{U,1,in,1}},{{A,1,out,2},{U,1,in,2}},{{U*,1,out,1},{A,1,in,1}},{{U*,1,out,2},{A,1,in,2}},{{U,1,out,2},{U*,1,in,2}}}
Out[]=
{{{A,1,out,1},{A,1,in,1}},{{A,1,out,2},{A,1,in,2}},{{dummy-U-OUT-1-1,1,in,1},{dummy-U*-IN-1-1,1,out,1}}},
1
n
Out[]=
Out[]=
id-Tr-UU-A-UstarUstar.pdf
Out[]=
,
1
n
Out[]=
E-id-Tr-UU-A-UstarUstar.pdf

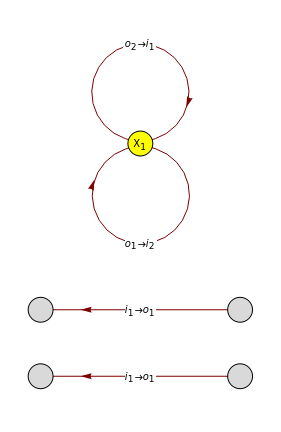

Example 6.3: Bi-partite twirling
Example 6.3: Bi-partite twirling
In[]:=
e1={{"X",1,"out",1},{"U",1,"in",1}};e2={{"U*",1,"out",1},{"X",1,"in",1}};e3={{"X",1,"out",2},{"U",2,"in",1}};e4={{"U*",2,"out",1},{"X",1,"in",2}};g={e1,e2,e3,e4}visualizeTN[g]Export["twirl.pdf",%]integrateHaarUnitary[g,"U",{d},{d},d]visualizeTN[%,EdgeLabelingTrue]Export["E-twirl.pdf",%]
Out[]=
{{{X,1,out,1},{U,1,in,1}},{{U*,1,out,1},{X,1,in,1}},{{X,1,out,2},{U,2,in,1}},{{U*,2,out,1},{X,1,in,2}}}
Out[]=
Out[]=
twirl.pdf
Out[]=
{{{X,1,out,1},{X,1,in,1}},{{X,1,out,2},{X,1,in,2}},{{dummy-U-OUT-1-1,1,in,1},{dummy-U*-IN-1-1,1,out,1}},{{dummy-U-OUT-2-1,1,in,1},{dummy-U*-IN-2-1,1,out,1}}},,{{{X,1,out,1},{X,1,in,1}},{{X,1,out,2},{X,1,in,2}},{{dummy-U-OUT-1-1,1,in,1},{dummy-U*-IN-2-1,1,out,1}},{{dummy-U-OUT-2-1,1,in,1},{dummy-U*-IN-1-1,1,out,1}}},,{{{X,1,out,1},{X,1,in,2}},{{X,1,out,2},{X,1,in,1}},{{dummy-U-OUT-1-1,1,in,1},{dummy-U*-IN-1-1,1,out,1}},{{dummy-U-OUT-2-1,1,in,1},{dummy-U*-IN-2-1,1,out,1}}},,{{{X,1,out,1},{X,1,in,2}},{{X,1,out,2},{X,1,in,1}},{{dummy-U-OUT-1-1,1,in,1},{dummy-U*-IN-2-1,1,out,1}},{{dummy-U-OUT-2-1,1,in,1},{dummy-U*-IN-1-1,1,out,1}}},
1
-1+
2
d
1
d-
3
d
1
d-
3
d
1
-1+
2
d
Out[]=
,,,,
,,,
1
-1+
2
d
1
d-
3
d
1
d-
3
d
1
-1+
2
d
Out[]=
E-twirl.pdf
Example 6.4: Bell state as input in conjugate random quantum channels
Example 6.4: Bell state as input in conjugate random quantum channels
In[]:=
e1={{"U*",2,"out",1},{"U",1,"in",1}};e2={{"U*",1,"out",1},{"U",2,"in",1}};e3={{"U",1,"out",1},{"U*",1,"in",1}};e4={{"U",2,"out",1},{"U*",2,"in",1}};e5={{"U",1,"out",2},{"U*",2,"in",2}};e6={{"U",2,"out",2},{"U*",1,"in",2}};g={e1,e2,e3,e4,e5,e6};listg={{g,1/(dk)}};Eg=integrateHaarUnitary[listg,"U",{d},{n,k},nk]overlap=Eg[[1,2]];overlapt=overlap/.{dtnk};Assuming[t>0&&k>1,Limit[overlapt,nInfinity]]//Simplify
Out[]=
{},-n-++k
2
d
2
k
dk-d
3
k
2
n
dk
2
n
dk-d
3
k
2
n
dn
2
k
dn-d
2
k
4
k
3
n
2
d
2
n
dn-d
2
k
4
k
3
n
Out[]=
1-t
2
k
Example 6.5: Random tensor networks for holographic duality
Example 6.5: Random tensor networks for holographic duality
In[]:=
(*seeseparatefileexamples_holographictensornetworks*)
In[]:=
Example 6.6: Computation of expectation values of matrix products
Example 6.6: Computation of expectation values of matrix products
In[]:=
MultinomialexpectationvalueHaar[d,{1,2},{X,Y},True]
Out[]=
Tr[X]Tr[Y]
d
In[]:=
MultinomialexpectationvalueHaar[d,{1,3},{X,Y},False]
Out[]=
0
In[]:=
MultinomialexpectationvalueHaar[d,{2,3},{X,Y},False]
Out[]=
X.Transpose[Y]
d
In[]:=
MultinomialexpectationvalueHaar[d,{1,4},{X,Y},True]
Out[]=
Tr[X.Transpose[Y]]
d
In[]:=
MultinomialexpectationvalueHaar[d,{1,2,3,4},{V,W,X,Y},False]
Out[]=
V.Transpose[Y].X.Transpose[W]
-1+
2
d
V.Transpose[Y].XTr[W]
d-
3
d
V.X.Transpose[W]Tr[Y]
d-
3
d
V.XTr[W]Tr[Y]
-1+
2
d
In[]:=
(*foradditionalexamplesfortheuseofMultinomialexpectationvalueHaar,seefileexamples_momentcalculator.nb*)
Cite this as: Motohisa Fukuda, Robert König, Ion Nechita, "RTNI - A symbolic integrator for Haar-random tensor networks" from the Notebook Archive (2019), https://notebookarchive.org/2020-01-a42211b
